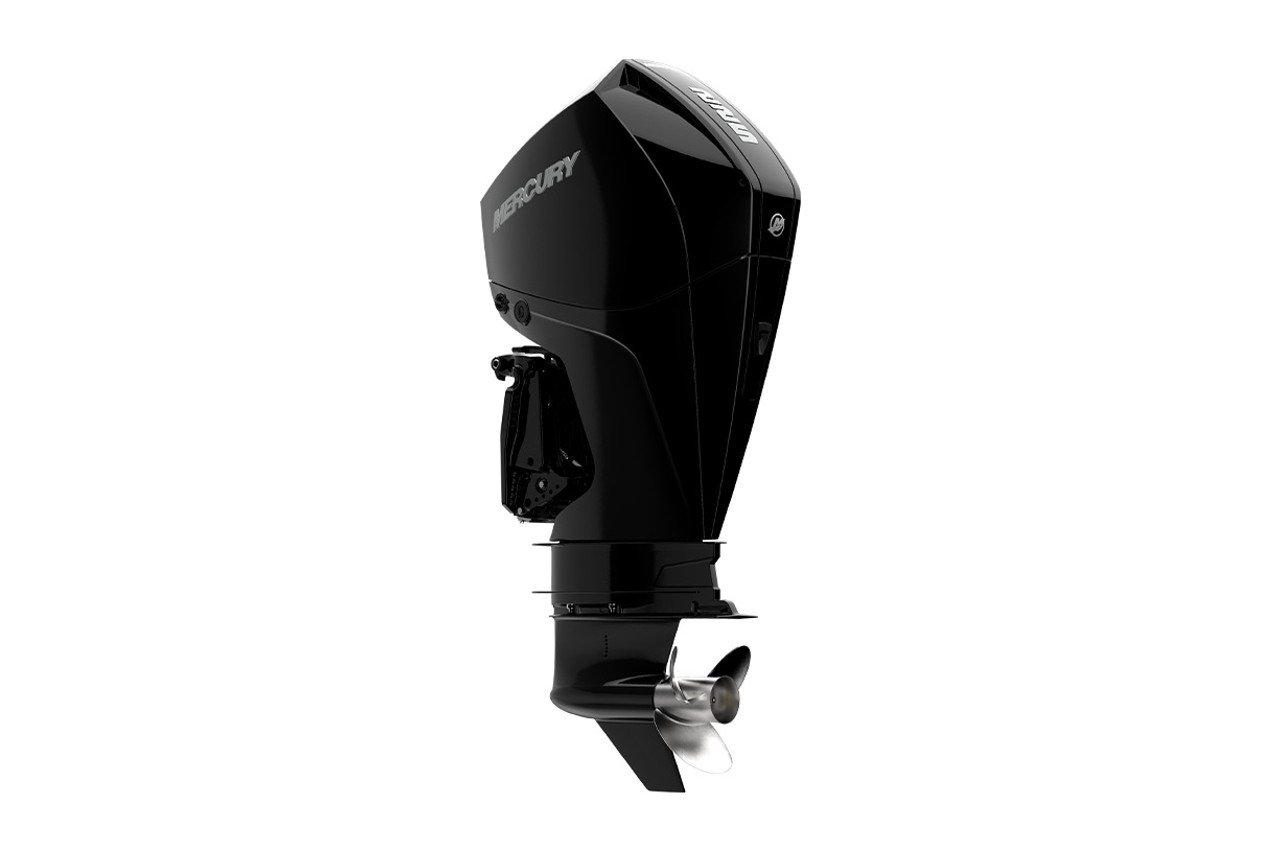

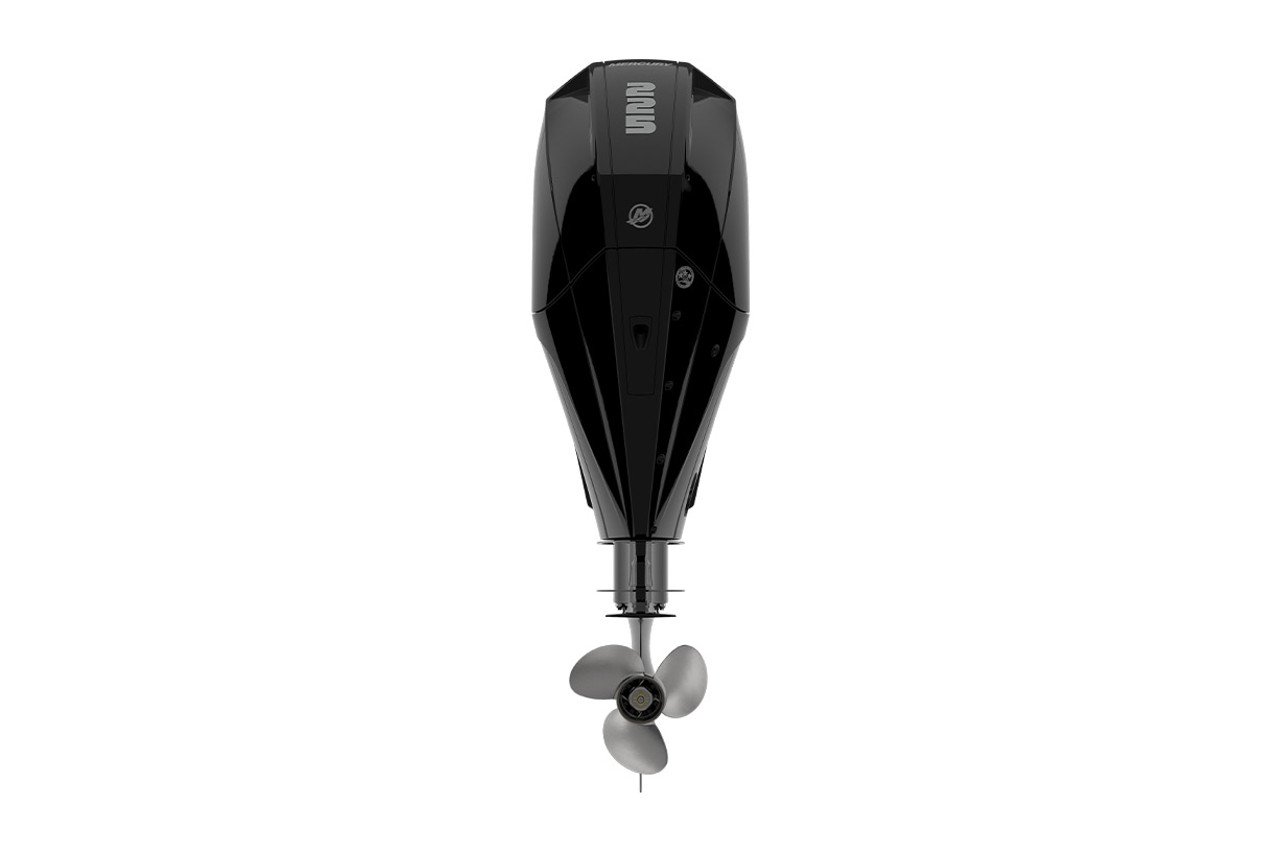

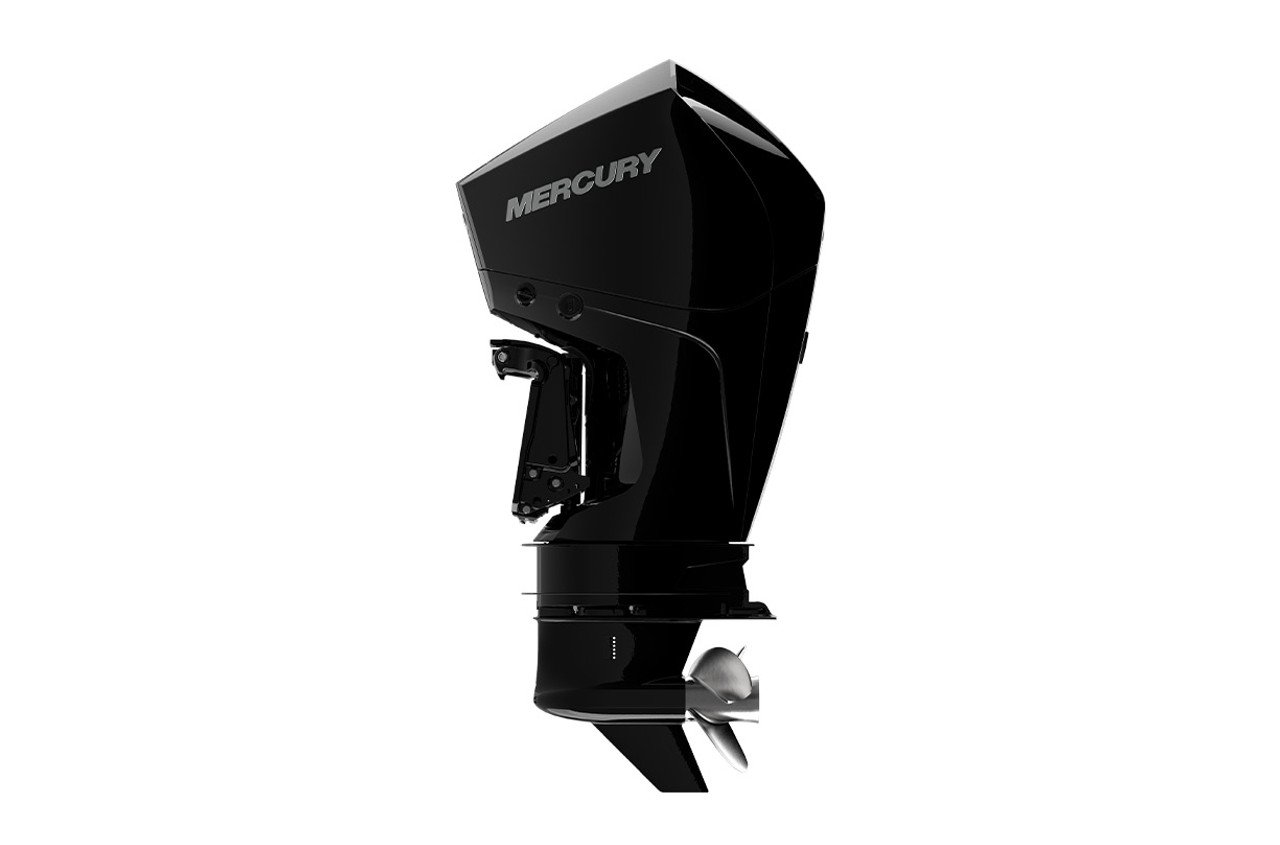

Mercury 225hp DTS Outboard | 225XXL

Key Features

Adaptive Speed Control: Maintains a desired rpm regardless of changes in load or conditions without adjustments to the throttle lever position.

Smooth and Quite: V6 FourStroke engines are quieter and smoother than the leading competitor.

Industry-Exclusive Battery Management Technology: When battery voltage is low, engines will automatically increase idle rpm to boost alternator output and charge batteries to the proper level, protecting the batteries from draining while trolling and operating electronic devices.

Motor Specifications

• • Engine Type: Mercury 225XXL DTS V-6 Four Stroke
  • Horsepower: 225hp
  • Cylinders: V-6
  • Shaft Length: 30″ XX-Long
  • Steering: Digital Throttle & Shift (DTS)
  • Starting: Smart Start Electric
  • Weight: 494 lbs
  • Maximum Trim Range: 20° (-6° to 14°)
  • Maximum Tilt Range: 73° (-6° to 67°)
  • Alternator: 85 amp / 1,071 watt with Idle Charge
  • Full Throttle Range: 5200 – 6000 rpm
  • Displacement: 3.4 L
  • Fuel System: Electronic Fuel Injection (EFI)
  • Fuel Induction System: 24-valve, DOHC
  • Warranty: Mercury Marine 3-Year Warranty

Standard Features

• • Power Trim & Tilt
  • Service Tool Kit & Parts
  • Stop Switch Lanyard
  • Owner’s Manual
