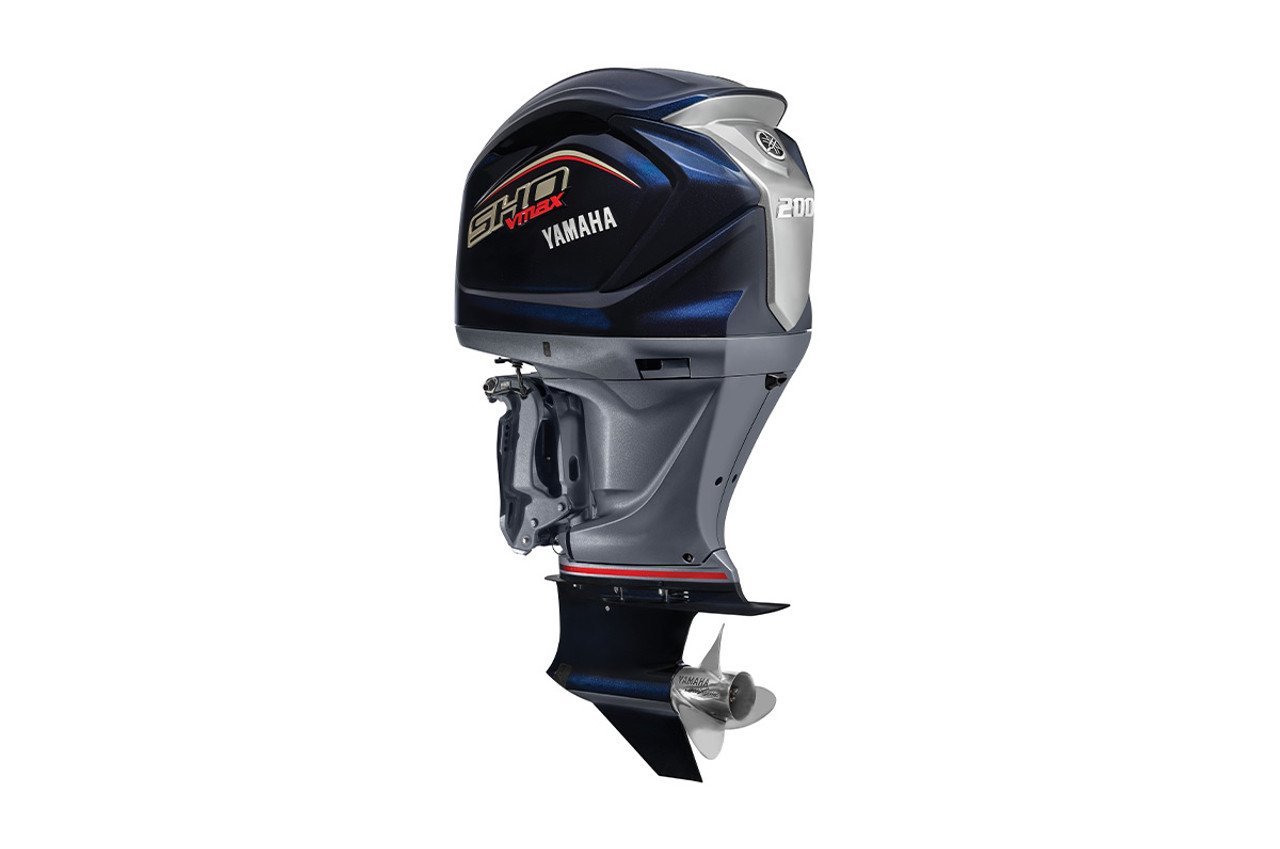

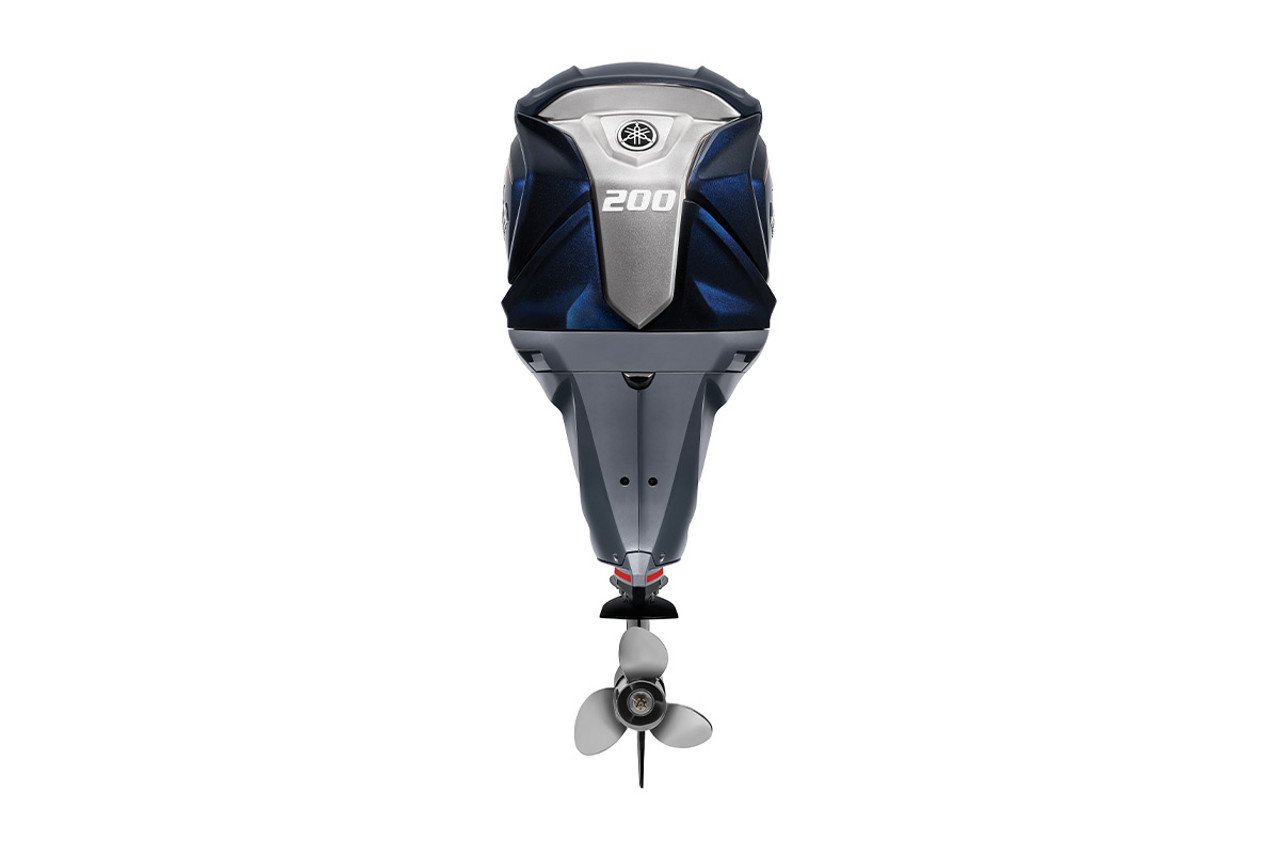

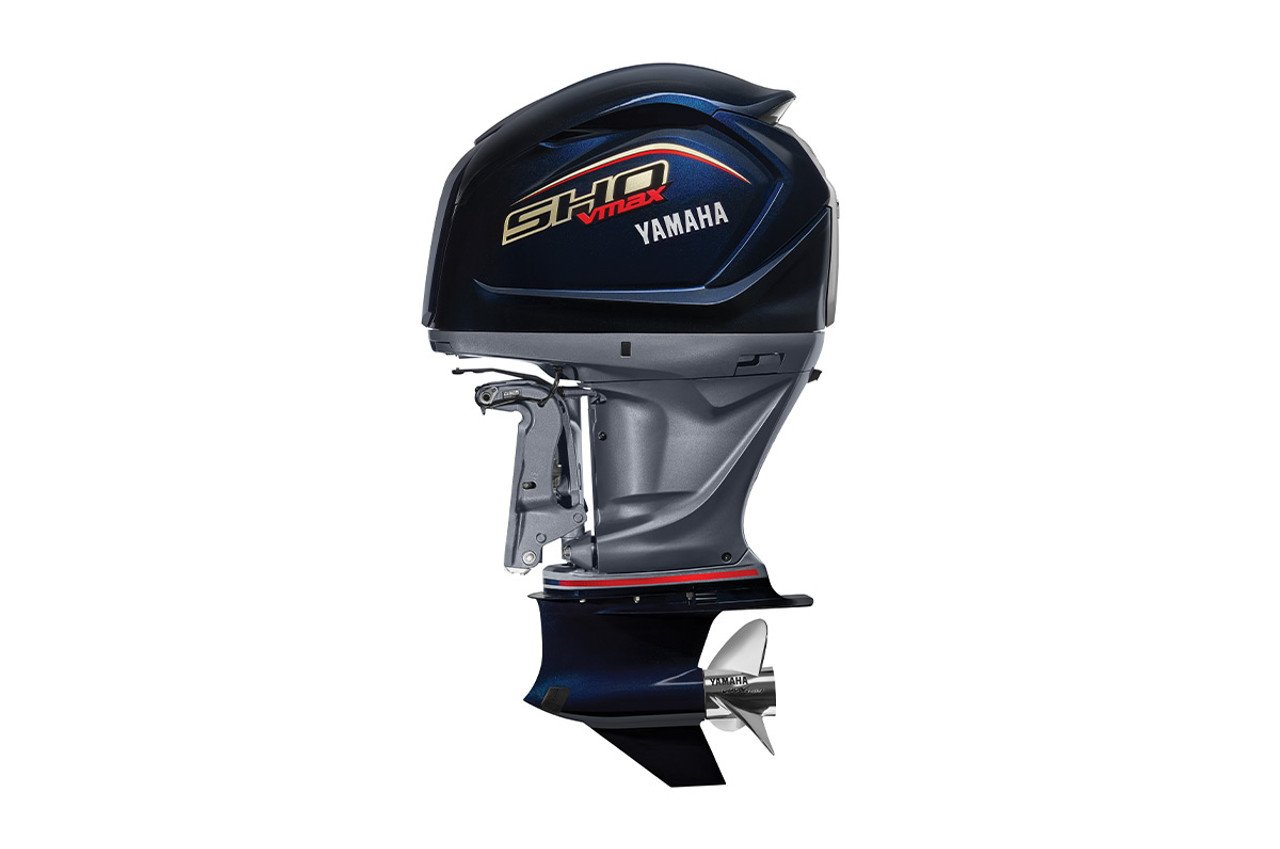

Yamaha 200hp V Max Sho Outboard | VF200XB

Key Features

Charging Power: The V6 V MAX SHO now produces up to 70 gross amps of charging power. This exciting, 40 percent increase in charging is more than enough juice for your growing array of on-board tech. They can also be equipped with an optional isolator lead to better charge house or trolling batteries.

Real-Time Performance Data: Optional digital backlit gauges provide real-time outboard performance, boat systems and environmental data at your fingertips. Streamlined displays are designed to withstand the elements and are available in square or round style for single- or multi-engine applications.

Fast, Easy Tilting: With a quick double-tap of the trim button, Yamaha’s new, exclusive, TotalTilt^® performs a full tilt up or down, until it reaches the trim rams. This makes trailering quick and easy and is handy when a complete up or down tilt is needed.

Motor Specifications

• • Engine Type: Yamaha VF200XB V Max Sho Four Stroke
  • Horsepower: 200hp
  • Cylinders: 6 cyl
  • Shaft Length: 25″ X-Long
  • Steering: Remote Mechanical
  • Starter: Electric
  • Weight: 567 lbs
  • Alternator Output: 70 amp
  • Degree of Tilt: 66°
  • Degree of Trim: -4° through +16°
  • Full Throttle Range: 5000 – 6000 rpm
  • Displacement: 4.2L
  • Fuel Induction System: Electronic Fuel Injection (EFI)
  • Warranty: Yamaha 3-Year Warranty

Standard Features

• • Power Trim & Tilt
  • Owner’s Manual
