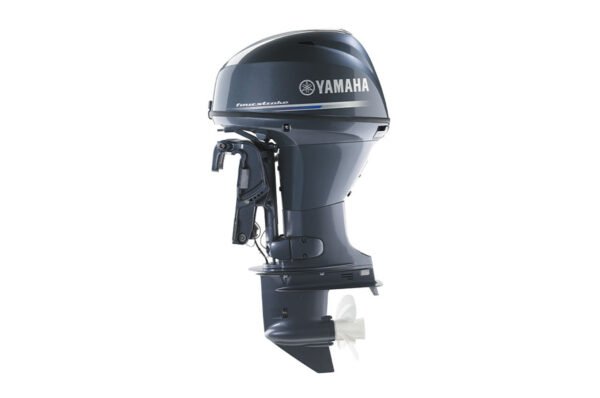

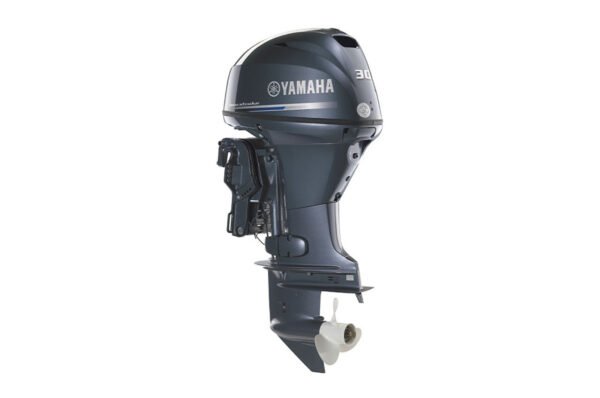

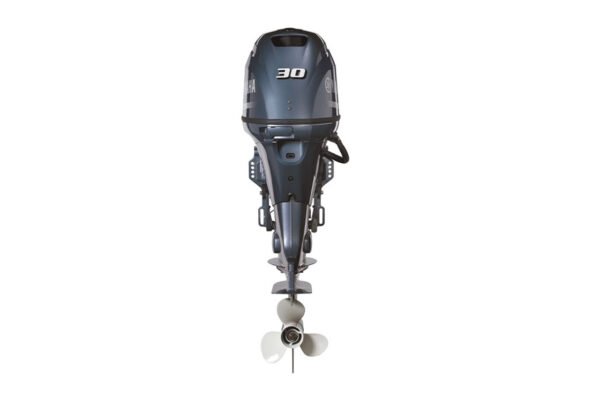

Yamaha 30hp Outboard | F30LA

Key Features

Control and Comfort: Yamaha’s optional, award-winning Multi-Function Tiller handle features a Variable Trolling RPM Switch (VTS). It allows for precision trolling speed adjustments in 50-RPM increments. Compatible with all Midrange models.

Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.

Power Trim and Tilt: Power trim and tilt models provide a trim range of -3 up to +20 degrees. This brings the bow of the boat up, for better hole shot and top speed and a smoother ride.

Reliability and Durability: Combined with Yamaha’s proprietary alloy (YDC-30), their exclusive Phaze Five™ anti-coorosive pain system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha Midrange four-stroke engines.

Motor Specifications

• • Engine Type: Yamaha F30LA Four Stroke
  • Horsepower: 30hp
  • Cylinders: 3 cyl
  • Shaft Length: 20″ Long
  • Steering: Remote Mechanical
  • Starter: Electric
  • Weight: 214 lbs
  • Alternator Output: 17 amp
  • Degree of Tilt: 65°- 66°
  • Degree of Trim: -3° through +20°
  • Full Throttle Range: 5000 – 6000 rpm
  • Displacement: 747cc
  • Fuel Induction System: Electronic Fuel Injection (EFI)
  • Warranty: Yamaha 3-Year Warranty

Standard Features

• • Power Trim & Tilt
  • Steering Link Arm
  • Fuel Line
  • Owner’s Manual
