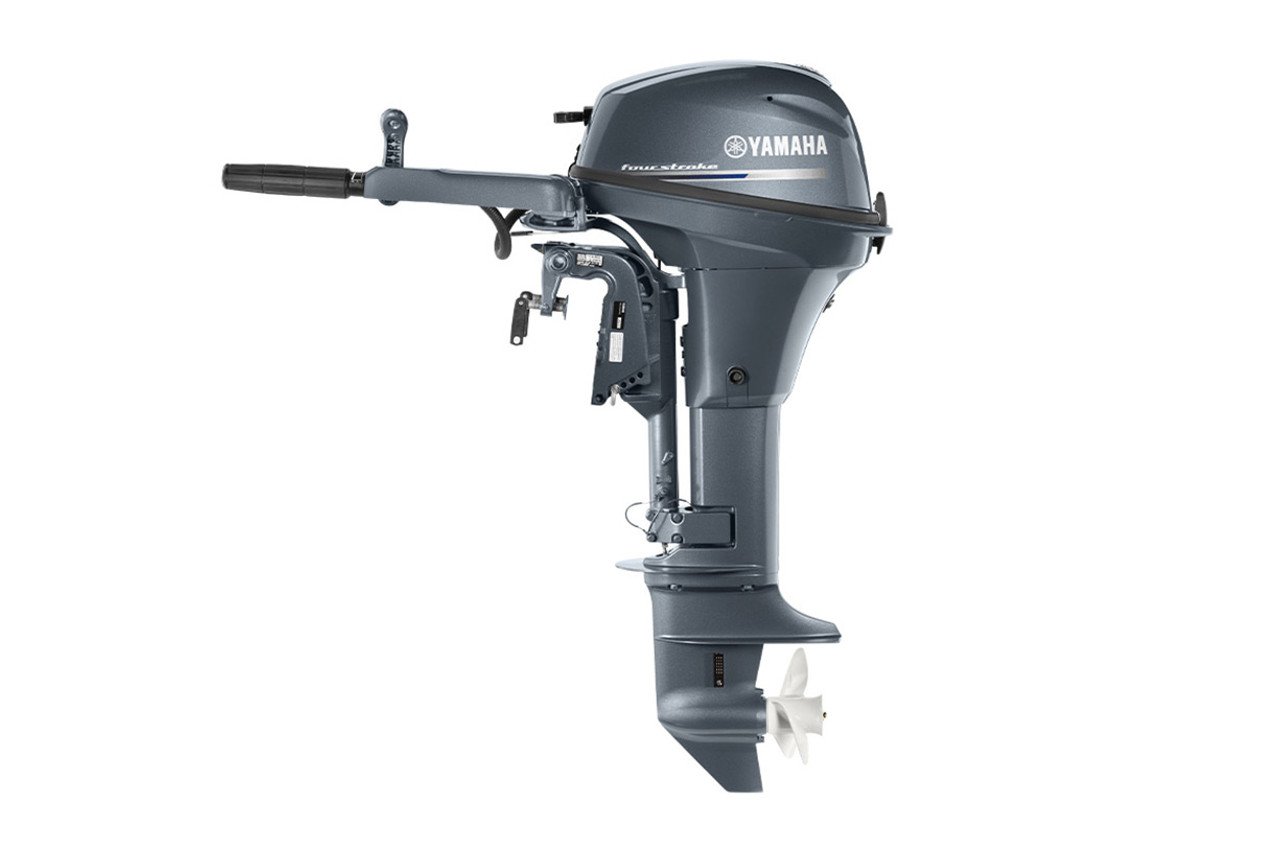

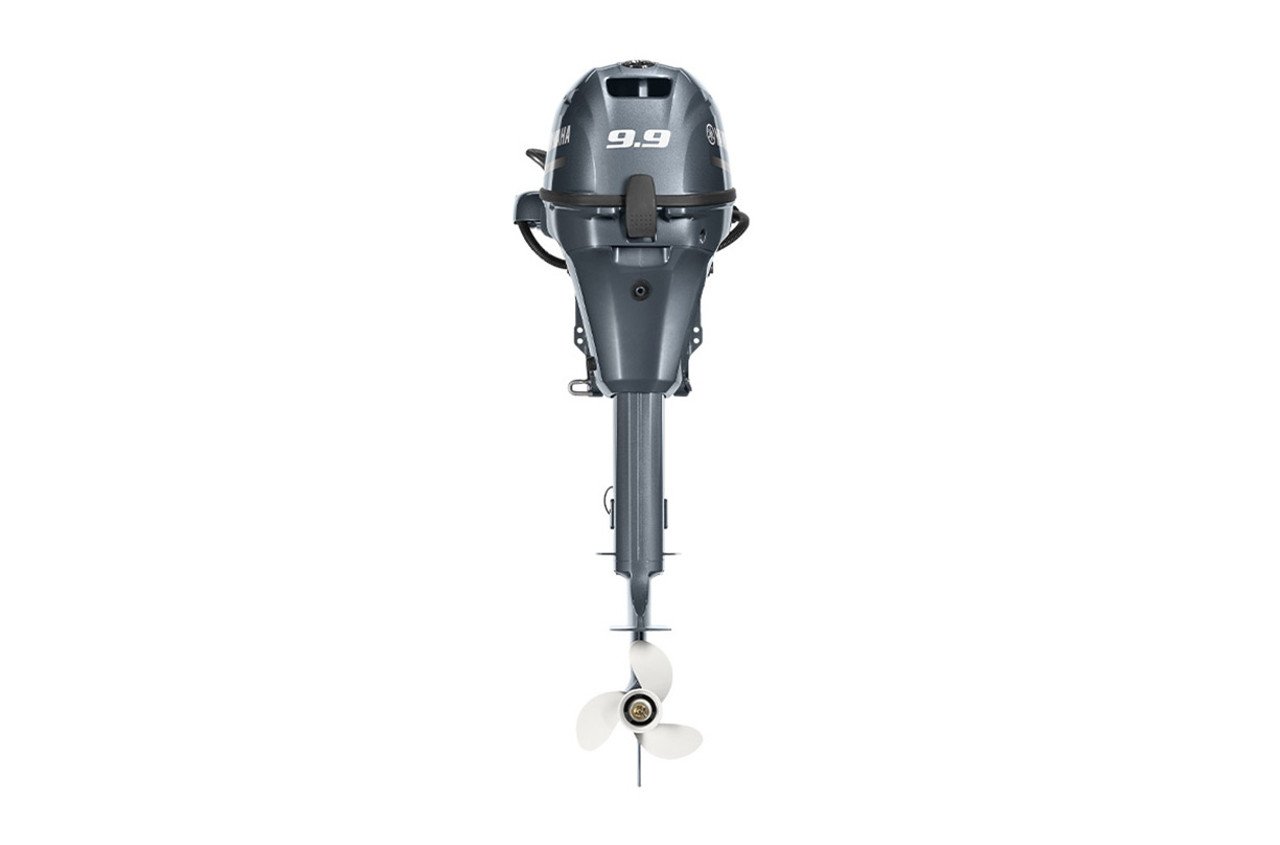

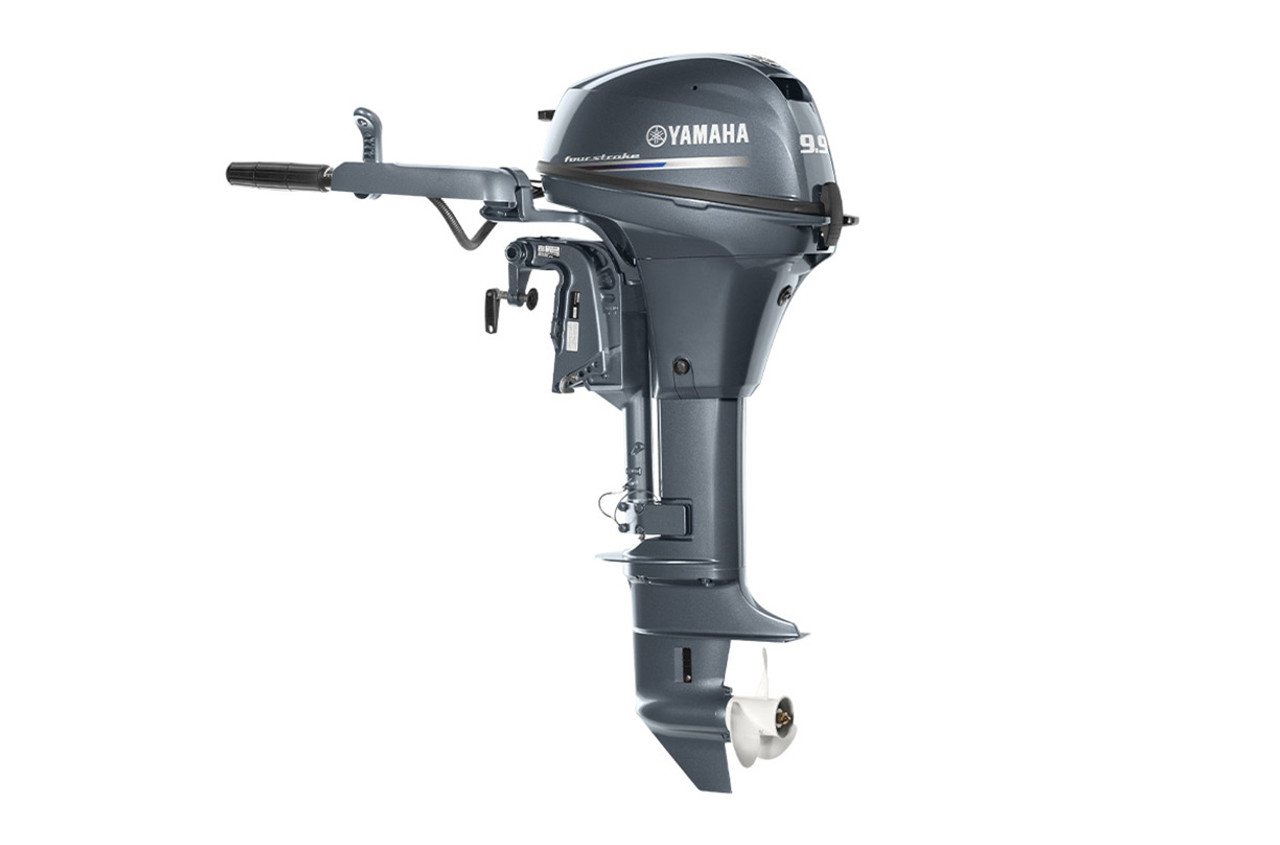

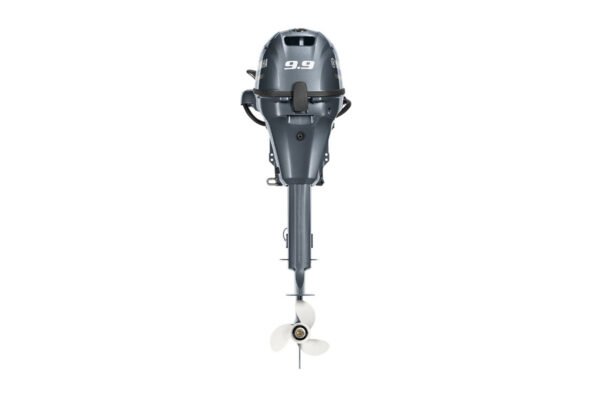

Yamaha 9.9hp Outboard | F9.9SMHB

Key Features

Smart Evolution: The F9.9 feature a new shorter handle for more comfortable operation. This also ensure that when the handle is hinged back, it tucks in tighter to the cowl for more stable, flexible storage.

Portability and Storage: Built-in front and rear handles make these lightweights easy to carry. Resting pads and an easy oil retention system allow for convenient on-side storage without cowling scuffs or oil leakage.

Propeller Protection: Yamaha’s Shallow Water Drive, standard on all 8hp tiller handle models, helps keep the propeller and lower unit out of harm’s way in shallow water.

Motor Specifications

• • Engine Type: Yamaha F9.9SMHB Four Stroke
  • Horsepower: 9.9hp
  • Cylinders: 2 cyl
  • Shaft Length: 15″ Short
  • Steering: Tiller
  • Starter: Manual
  • Weight: 87 lbs
  • Alternator Output: 6 amp
  • Degree of Tilt: 71°
  • Degree of Trim: -4° through +16°
  • Full Throttle Range: 5000 – 6000 rpm
  • Displacement: 212cc
  • Fuel Induction System: Carb
  • Warranty: Yamaha 3-Year Warranty

Standard Features

• • Aluminum Propeller
  • Fuel Line
  • Safety Lanyard
  • Owner’s Manual
